Features:

• 80 PLUS Gold (Up to 90% efficiency at 115Vac, 50% load)
• Support the latest Intel & AMD Socket
• PCI Express & Serial ATA ready
• DC to DC converter design
• Low ripple & noise
• Super low noise fan control
• Short circuit protection on all outputs
• Over voltage protection
• Over power protection
• 100% hi-pot test
• 100% burn in, high temperature cycled on/of

Specifications:

• Form factor: ATX
• Dimension: 150mm(L)*140mm(W)*86mm(H)
• Safety: CTUVus / CUL*, TUV, CB, BSMI (* for SSP-350GT )
• EMI/RFI: CE, FCC, C-tic
• Input frequency: 47/63 Hz
• Inrush current, cold start: 100Amax.
• Line regulation: +/-1% typical
• Load regulation: +/-5% typical
• Cross regulation: +/-5% typical
• Ripple / noise:1%
• MTBF, full load @ 25℃amb. : >100K hours (Excluding the DC fan)
• Power Factor Correction: Active PFC 99% typical

DC Output:	AC Input: 100~240Vac 50/60Hz
Model	3.3V	5V	12V1	12V2	-12V	5Vsb	Total Power

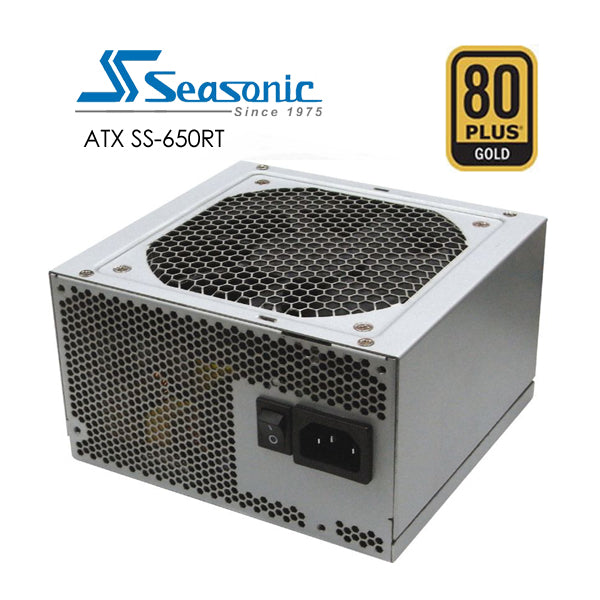

SS-650RT	20A	20A	54A	54A	0.3A	2.5A	650W
	100W		648W		3.6W	12.5W
SS-550RT	20A	20A	45A	45A	0.3A	2.5A	550W
	100W		540W		3.6W	12.5W
SS-450RT	20A	20A	37A	37A	0.3A	2.5A	450W
	100W		444W		3.6W	12.5W
SS-350GT	12A	16A	29A	29A	0.3A	2.5A	350W
	80W		348W		3.6W	12.5W

Cables and Connections:

M/B wire(mm)		GPU wire(mm)	Peripheral wire(mm)
24P	4+4P	6+2P	B/S/SATA	Length
550	550	550/100 550/100	2SATA 2SATA 2B1S	270/150 270/150 330/150/152

• EPS 4+4 PIN X 1
• 20+ 4 MAIN CONNECTOR X 1
• 4PIN MOLEX X 2
• LONG SATA X 4
• FLOPPY X 1
• 6+2 PIN PCI-E X 2

Connectors:

• Main Power (24/20P) x 1
• ATX12V (4P/8P) x 1
• Peripherals: SATA, HDD, FDD
