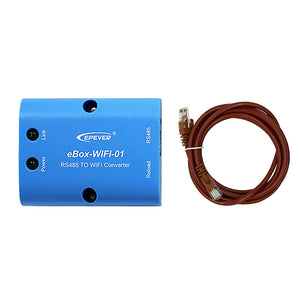

rs485 to wifi adapter for mppt solar charge controller communication wireless

Name: rs485 to wifi adapter for mppt solar charge controller communication w
Brand: GetThat
Price: 31.71 AUD
Availability: InStock

$31.71

Get it between Jun 07 - Jun 09

Quantity

Guaranteed safe & secure checkout

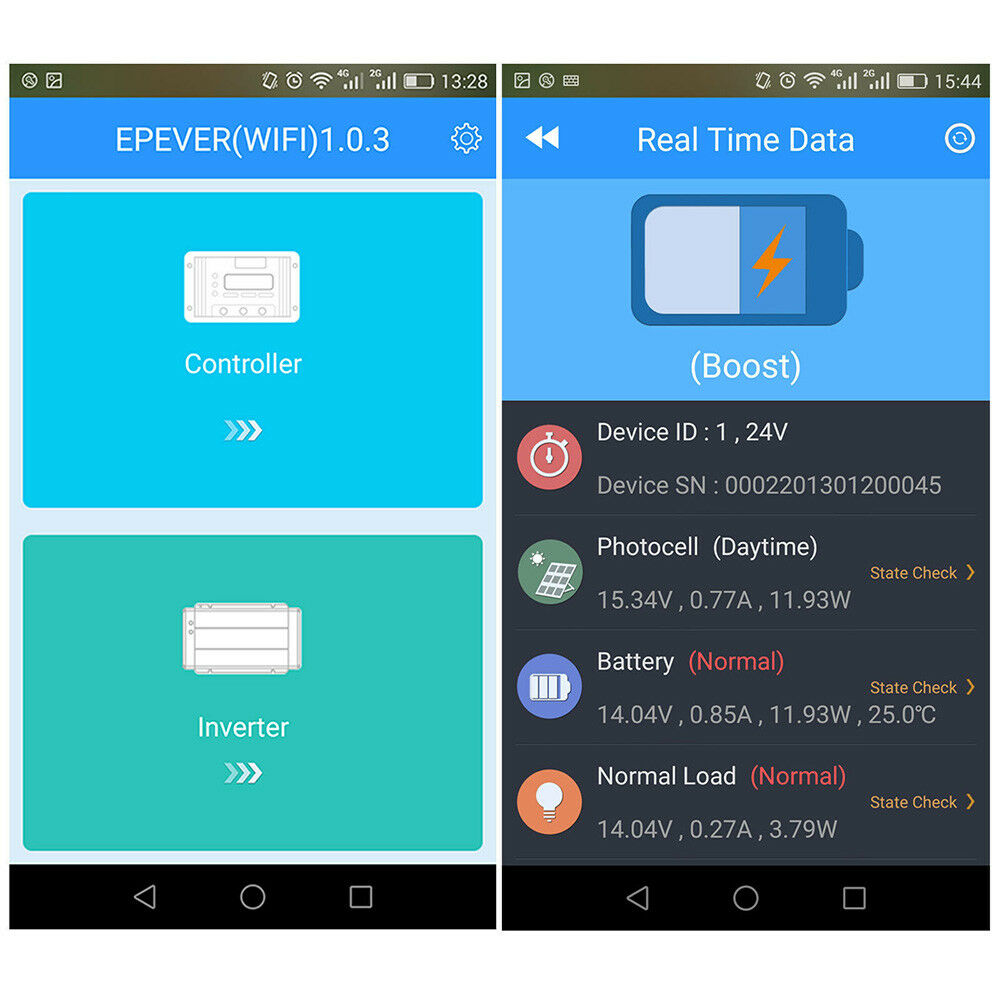

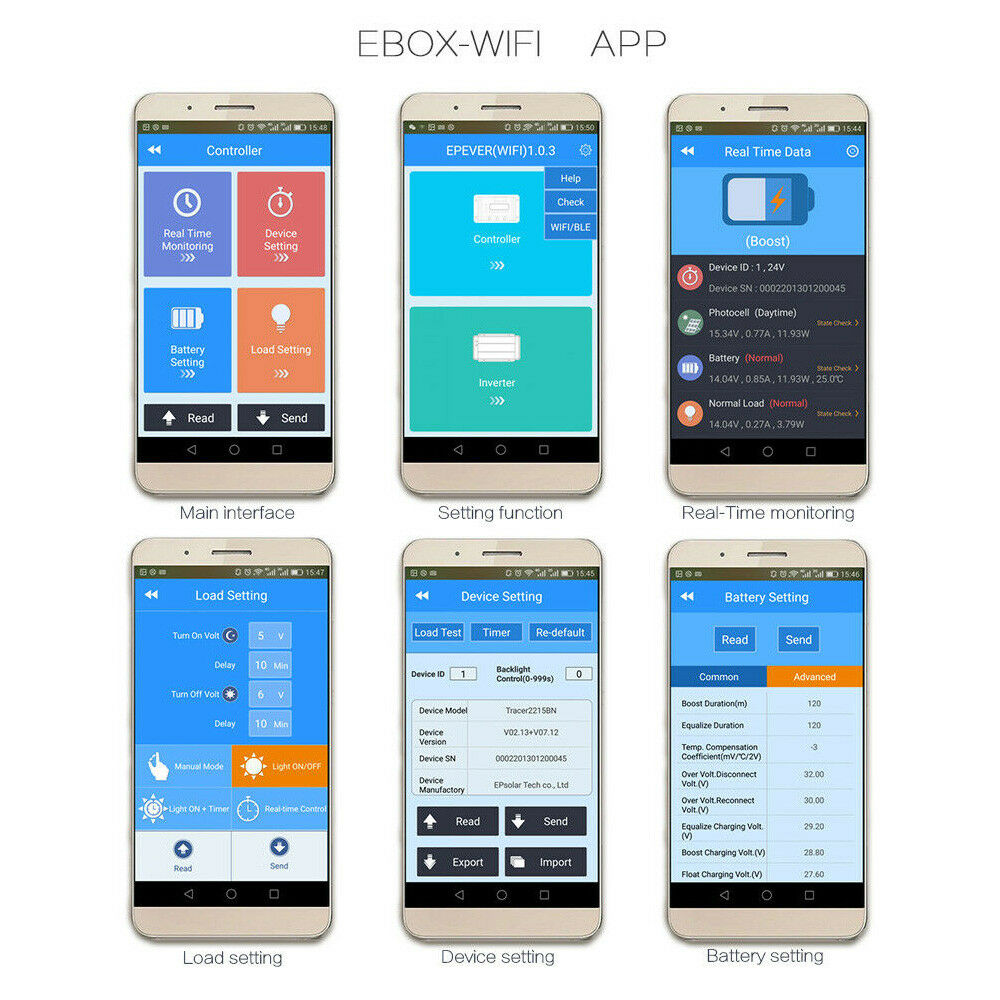

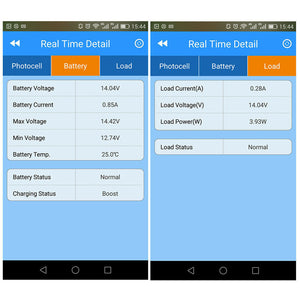

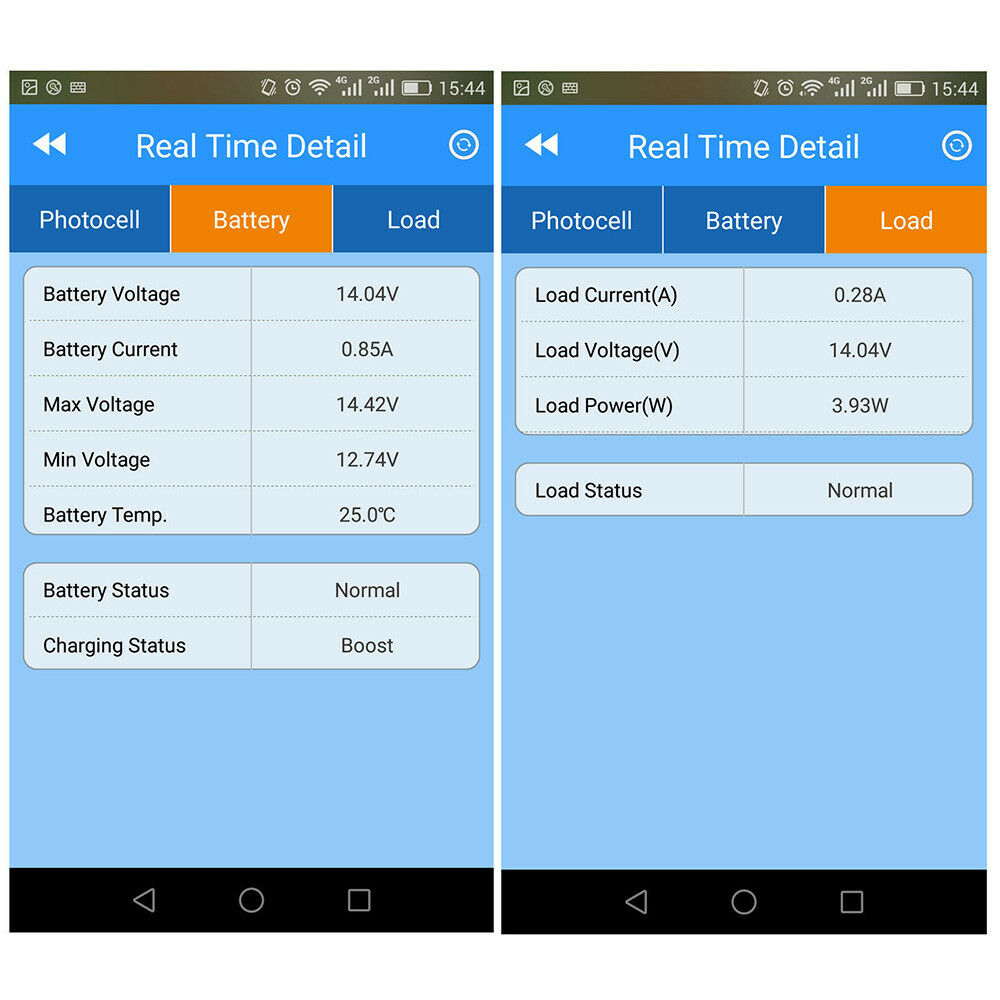

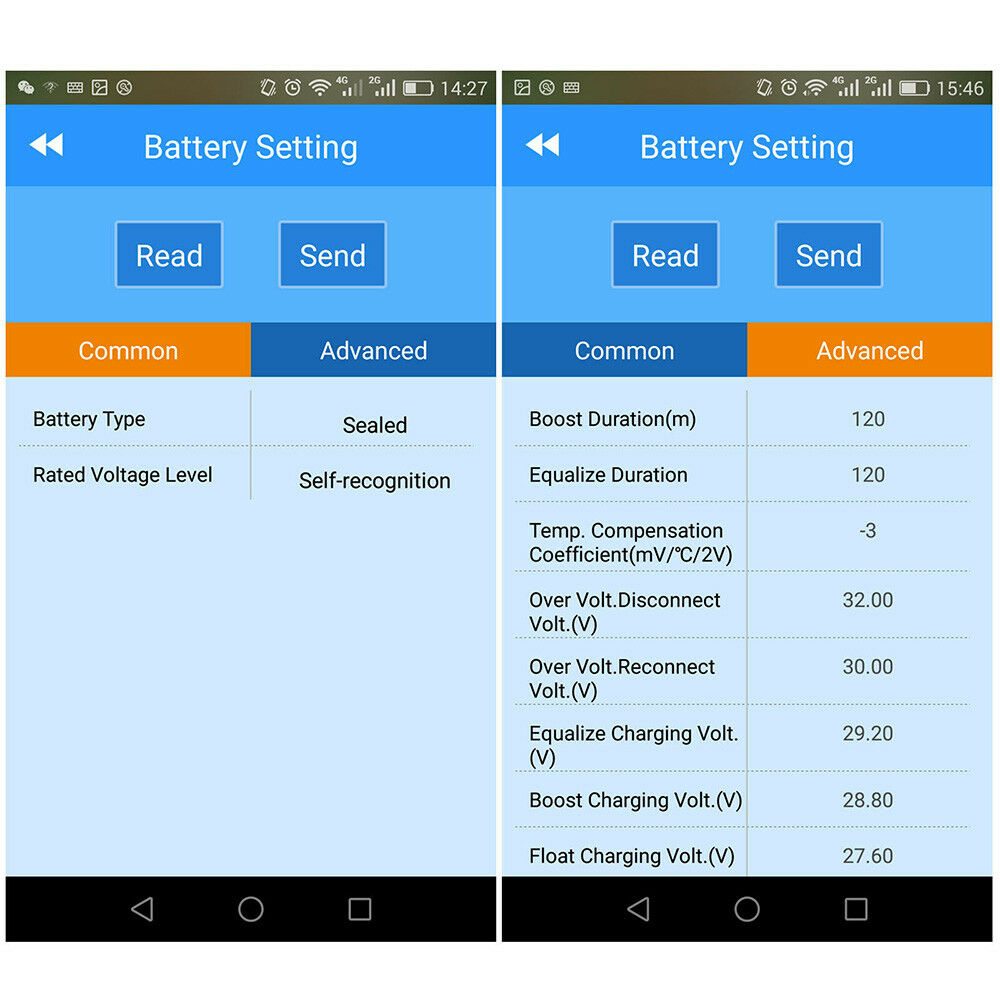

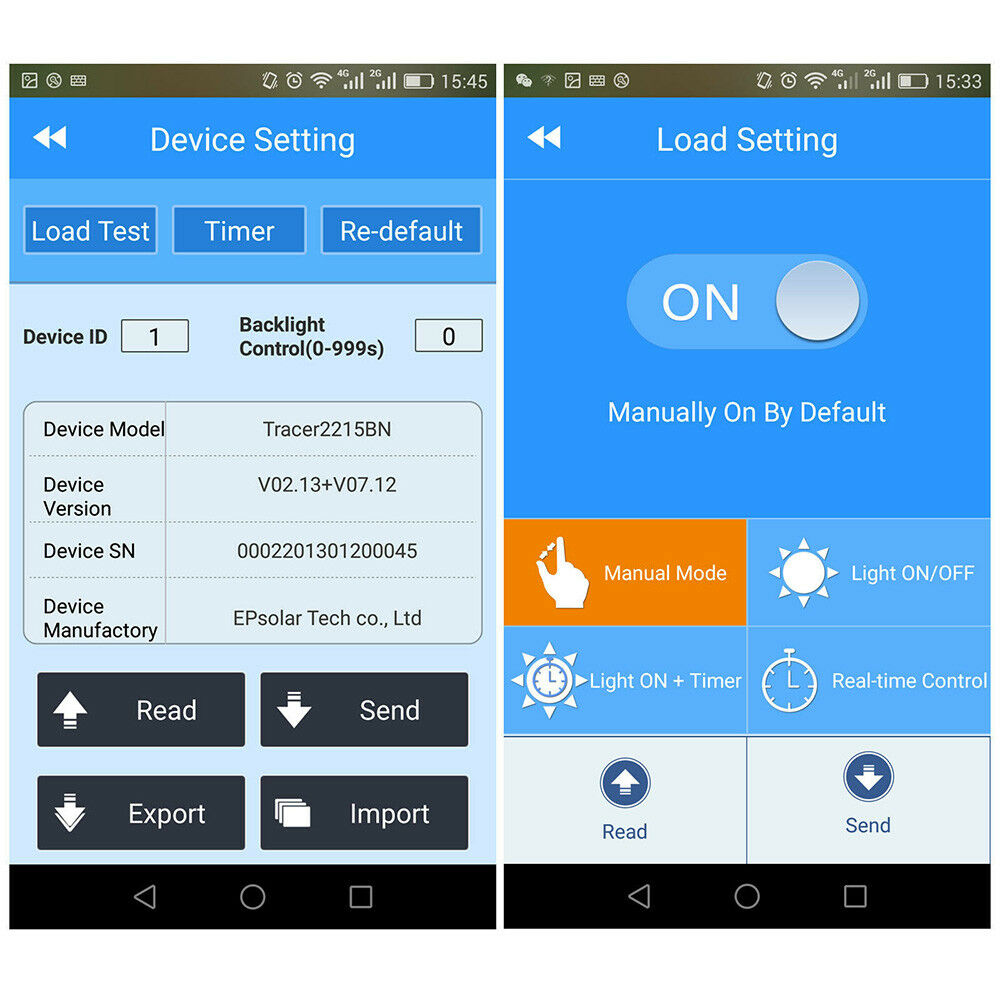

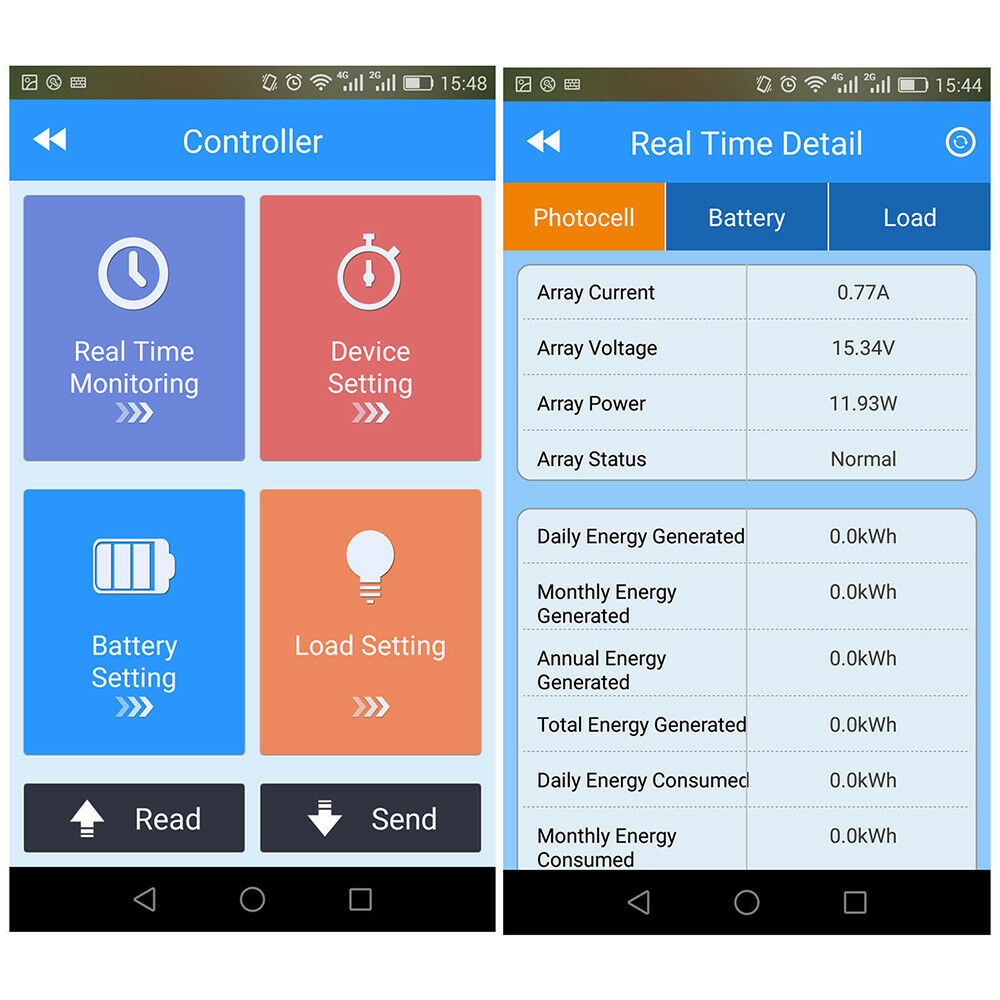

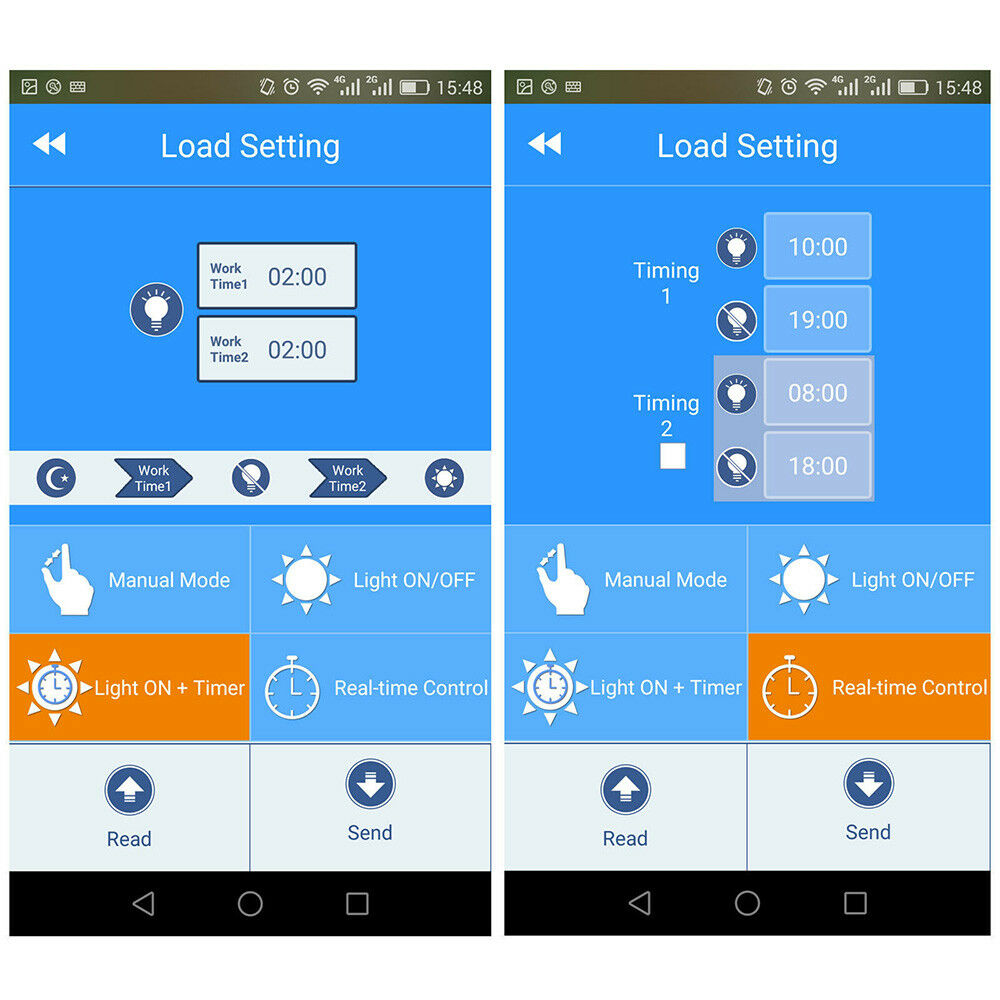

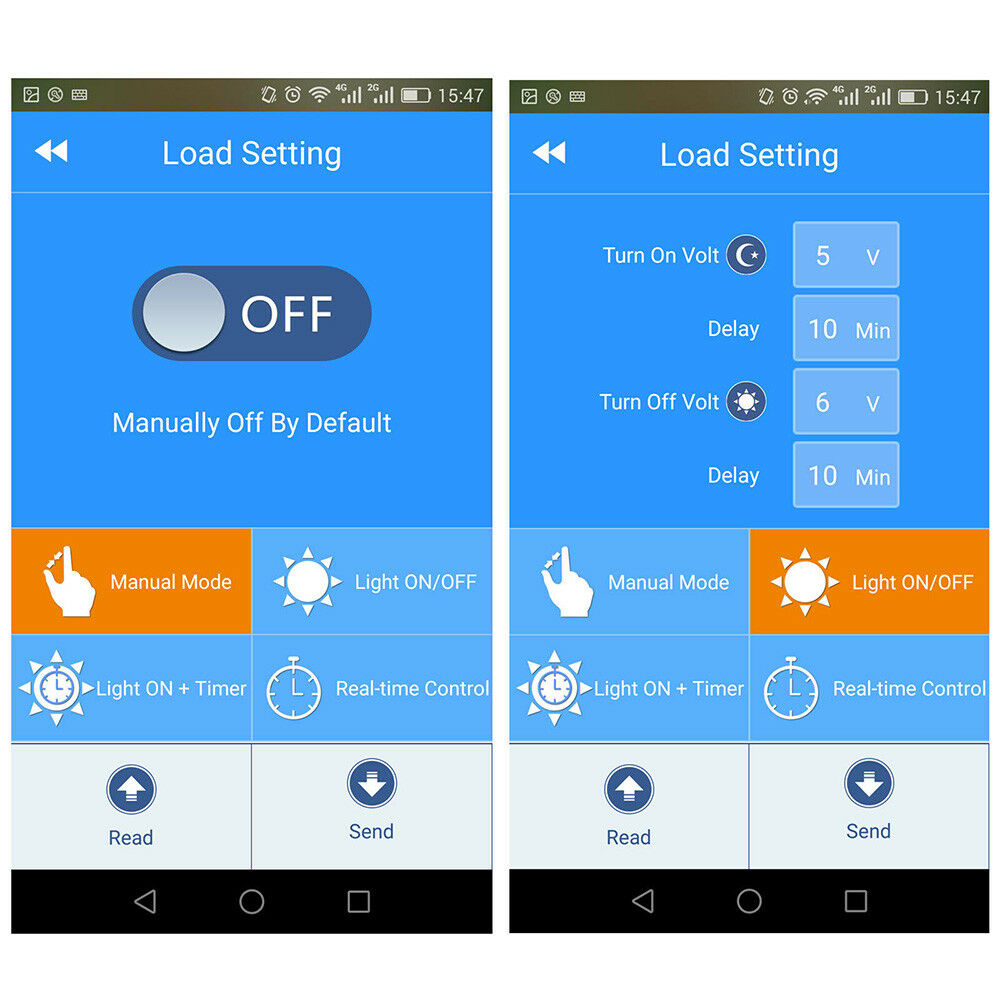

This is a kind of serial server which can make our company's solar controller and inverter be with wifi communication function,and carry out wireless monitoring, parameter settings, and etc. for the system only by cooperating with mobile phone APP.

Input Voltage	5VDC(Direct powered by RS485 port )
Standby power consumption	0.20W
Operation power consumption	0.25W
Communication distance	≤50m
Port baud rate	300bps~230400bps(Default 115200)
Communication	RS485 to WIFI
Interface type	RJ45
Connecting cable	Standard network cable (Parallel cable)
Overall dimension	516724.5mm
Mounting dimension	41.2
Mounting hole size	Φ3.2
Working temperature	-35~75℃
Enclosure	IP30
Net weight	39g
